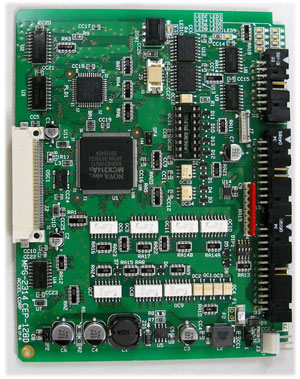

The new MPG-2314(CEP-128D) is completely compatible with the former MPG-2314(CEP-128C)
,and added those functions as follows.
1) DSW=8,9 positions are available. One MPC-2100 can control 10 of MPG-2314.
2) Changing the position of DIP1 ,When IN1 is connected to Z(C) phase of the encoder.
3) Making a gap between connectors, to lay the option cable for the U,Z encoders.
4) The real time signals caused by comparing of counters are available.
|
 |
|
2009-12-04
|
